Name: Primary/Secondary

Display Field: Name

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>Canals and streams (AHED HydroEdges) are the network of lines describing the map hydrography. The HydroEdge feature class was populated using the 1:24000 National Hydrography Dataset (NHD). There are two subtypes of HydroEdges: Flowline, which traces water movement, and Shoreline, which forms the interface between land and water where it is not defined by a waterbody polygon. HydroEdge geometry imagery for primary and secondary features has been edited for correctness using the District's aerial. According to the Arc Hydro Model, the end points of HydroEdges are always covered by point features called HydroJunctions.</SPAN></P></DIV></DIV></DIV>

Service Item Id: da0a69d8c04b489ba59c364afac09474

Copyright Text: Geospatial Services is a unit within the South Florida Water Management District’s Information Technology Bureau (ITB). Geospatial Services manages and maintains enterprise geospatial services, products, and data and is governed by the ITB's Policies and Procedures.

Default Visibility: true

MaxRecordCount: 30000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 4622324.434309

Max Scale: 4513.988705

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 241908.65156250075
YMin: 69341.33020833135
XMax: 972090.5083333328
YMax: 1532650.7911458313
Spatial Reference: 2881  (2881)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: HYDRO_ORDER
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: PRIMARY
  Label: Primary
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 197, 255, 255]
  Width: 1
• Value: SECONDARY
  Label: Secondary
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [190, 232, 255, 255]
  Width: 1
Transparency: 0
Labeling Info:
Label Placement: esriServerLinePlacementAboveAlong
Label Expression: [Name]
Use Coded Values: true
Symbol:
Color: [115, 223, 255, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 8
Font Family: Arial
Font Style: italic
Font Weight: bold
Font Decoration: none

Min. Scale: 600000.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: true

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeNone

Type ID Field: EDGETYPE

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• ENABLED ( type: esriFieldTypeSmallInteger, alias: ENABLED , Coded Values: [0: False] , [1: True] )
• EXPERT ( type: esriFieldTypeString, alias: EXPERT, length: 30 )
• HYDROID ( type: esriFieldTypeInteger, alias: HYDROID )
• NAME ( type: esriFieldTypeString, alias: NAME, length: 30 )
• ALIAS ( type: esriFieldTypeString, alias: ALIAS, length: 100 )
• LENGTHMI ( type: esriFieldTypeDouble, alias: LENGTHMI )
• EDGETYPE ( type: esriFieldTypeInteger, alias: EDGETYPE , Coded Values: [1: FLOWLINE] , [2: SHORELINE] )
• NHD_GNIS_NAME ( type: esriFieldTypeString, alias: NHD_GNIS_NAME, length: 65 )
• FROM_NODE ( type: esriFieldTypeInteger, alias: FROM_NODE )
• TO_NODE ( type: esriFieldTypeInteger, alias: TO_NODE )
• HYDRO_ORDER ( type: esriFieldTypeString, alias: HYDRO_ORDER, length: 30 , Coded Values: [PRIMARY: PRIMARY] , [SECONDARY: SECONDARY] , [TERTIARY: TERTIARY] , ...1 more... )
• WATERBODYID ( type: esriFieldTypeInteger, alias: WATERBODYID )
• FLOWDIR ( type: esriFieldTypeInteger, alias: FLOWDIR , Coded Values: [0: UNINITIALIZED] , [1: WITHDIGITIZED] , [2: AGAINSTDIGITIZED] , ...1 more... )
• SOURCEID ( type: esriFieldTypeInteger, alias: SOURCEID )
• SEG_NAME ( type: esriFieldTypeString, alias: SEG_NAME, length: 30 )
• FLOWLINETYPE ( type: esriFieldTypeInteger, alias: FLOWLINETYPE , Coded Values: [1: ARTIFICIALPATH] , [2: CANALDITCH] , [3: STREAMRIVER] )
• QCSTATUS ( type: esriFieldTypeSmallInteger, alias: QCSTATUS , Coded Values: [0: LOADED - NO QC] , [1: EDITOR QC] , [2: DBO QC] , ...2 more... )
• CARTO ( type: esriFieldTypeSmallInteger, alias: CARTO , Coded Values: [0: NOT CODED] , [1: DO NOT DRAW] , [2: DRAW] )
• SHAPE ( type: esriFieldTypeGeometry, alias: Shape )
• LENGTHDOWN ( type: esriFieldTypeDouble, alias: LENGTHDOWN )
• NEXTDOWNID ( type: esriFieldTypeInteger, alias: NEXTDOWNID )
• SHAPE.STLength() ( type: esriFieldTypeDouble, alias: SHAPE.STLength() )
• VIEW_PRIORITY ( type: esriFieldTypeSmallInteger, alias: VIEW_PRIORITY )
• OWNER ( type: esriFieldTypeString, alias: OWNER, length: 60 )
• HYDRO_ORDER_I ( type: esriFieldTypeSmallInteger, alias: HYDRO_ORDER_I )
• WOD ( type: esriFieldTypeString, alias: WOD, length: 20 , Coded Values: [WOD: WOD] , [WOD 2024: WOD 2024] )
• FUNC_LOC ( type: esriFieldTypeString, alias: FUNC_LOC, length: 30 )
• OPER_MAINT ( type: esriFieldTypeString, alias: OPER_MAINT, length: 60 )
• WM_FEATURE ( type: esriFieldTypeString, alias: WM_FEATURE, length: 100 )

Types:

ID: 2
Name: SHORELINE
Domains:
• ENABLED:
  Inherited
• EDGETYPE:
  Inherited
• HYDRO_ORDER:
  Inherited
• FLOWDIR:
  Inherited
• FLOWLINETYPE:
  Inherited
• QCSTATUS:
  Inherited
• CARTO:
  Inherited

---

ID: 1
Name: FLOWLINE
Domains:
• ENABLED:
  Inherited
• EDGETYPE:
  Inherited
• HYDRO_ORDER:
  Inherited
• FLOWDIR:
  Inherited
• FLOWLINETYPE:
  Inherited
• QCSTATUS:
  Inherited
• CARTO:
  Inherited

---

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

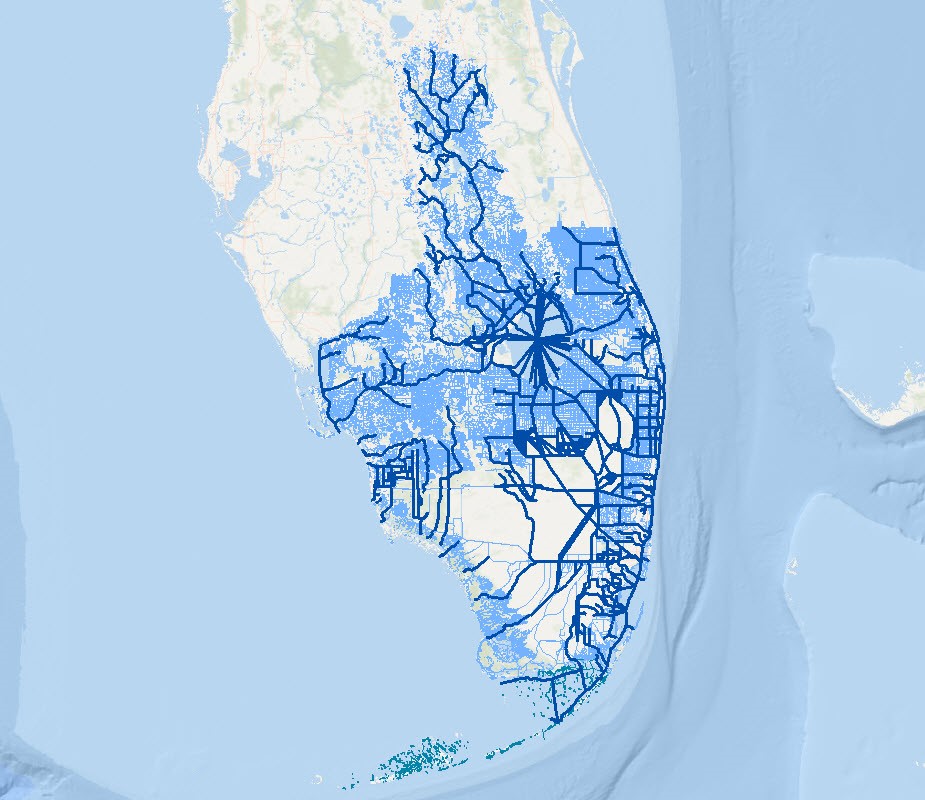

  Iteminfo   Thumbnail   Metadata
