Name: SFWMD Rain Areas

Display Field: POLYGON_NM

Type: Feature Layer

Geometry Type: esriGeometryPolygon

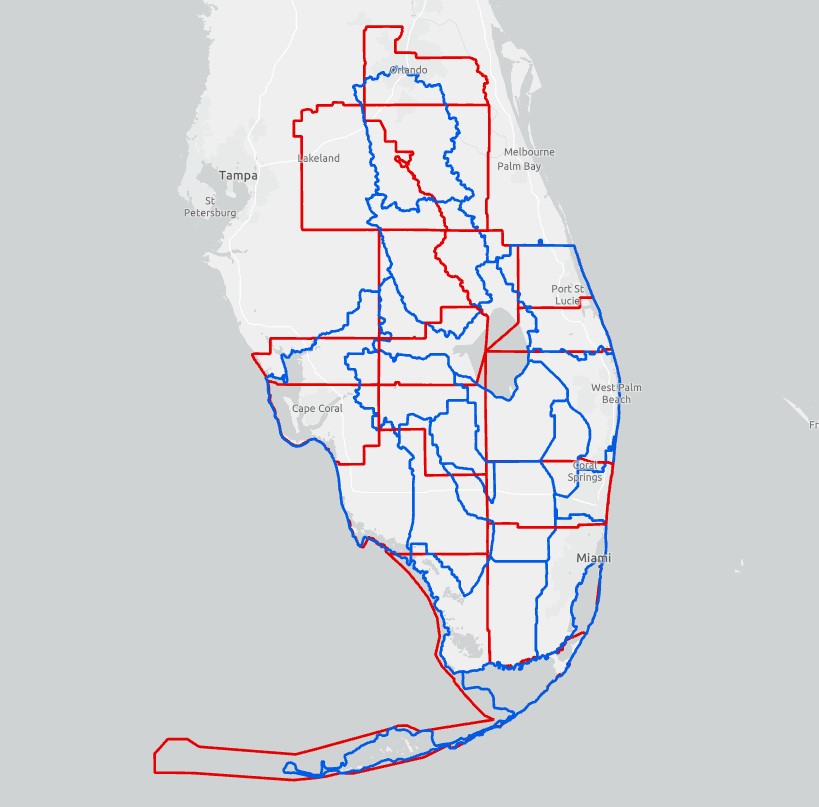

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>This polygon feature class shows location and extent of SFWMD Counties and AHED Rain Areas with rainfall frequency, duration, and percentiles from USGS CORDEX model change factors report. This feature class was created for use in the Rainfall Experience Builder being deployed to the SFWMD Resiliency HUB. The ArcGIS command "Join Features" was used with the one to many option to join change factors from the combination of rainfall frequency (5, 10, 25, 50, 100, and 200 yr event) with rainfall durations (1-, 3-, and 7-day events) for select rainfall basisns.</SPAN></P></DIV></DIV></DIV>

Service Item Id: 2460e48a64ce421cbb9f423953d83d39

Copyright Text: SFWMD Resiliency Team

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -5681.62314517051
YMin: 62701.34806615859
XMax: 972412.0200730786
YMax: 1618929.4508268237
Spatial Reference: 2881  (2881)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSSolid
Color: [252, 200, 181, 0]
Outline:
Style: esriSLSSolid
Color: [0, 77, 168, 255]
Width: 2
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID1 ( type: esriFieldTypeOID, alias: OBJECTID )
• POLYGON_NM ( type: esriFieldTypeString, alias: Area Name, length: 1073741822 )
• Area_of_Interest ( type: esriFieldTypeString, alias: Area of Interest, length: 1073741822 )
• Rainfall_Duration ( type: esriFieldTypeDouble, alias: Rainfall Duration )
• Return_Period ( type: esriFieldTypeDouble, alias: Return Period )
• Percentile_5th ( type: esriFieldTypeDouble, alias: Percentile 5th )
• Percentile_25th ( type: esriFieldTypeDouble, alias: Percentile 25th )
• Percentile_50th ( type: esriFieldTypeDouble, alias: Percentile 50th )
• Percentile_75th ( type: esriFieldTypeDouble, alias: Percentile 75th )
• Percentile_95th ( type: esriFieldTypeDouble, alias: Percentile 95th )
• ChgFactorSource ( type: esriFieldTypeString, alias: Change Factor Source, length: 255 )
• ChgFactorYear ( type: esriFieldTypeInteger, alias: Change Factor Report Year )
• ChgBndType ( type: esriFieldTypeString, alias: Change Factor Area Type, length: 50 )
• PlanHorizon ( type: esriFieldTypeString, alias: Planning Horizon, length: 25 )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• SHAPE.STArea() ( type: esriFieldTypeDouble, alias: SHAPE.STArea() )
• SHAPE.STLength() ( type: esriFieldTypeDouble, alias: SHAPE.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
